Y15

Y15 is a small size and low demanding analyser that facilitates automation of tests, reducing working time and improving the laboratory efficiency.

Key Features and Benefits

Efficiency in lab automation

Y15 is an open analyser that easily adapts to any need, and thanks to its multiple configuration options, it can work with and monitor different sample types simultaneously. Now featuring a redesigned cover for a more modern and robust look.

Minimum handling

Reagents adapted and dedicated to the analyser, avoiding the manual liquid handling.

Reliable and validated analysis system

Y15, in conjunction with the BioSystems line of reagents, is a fully developed system validated for use in oenological and food and beverage laboratories and industries.

Continuous loading

Samples continuous loading to streamline laboratory tasks.

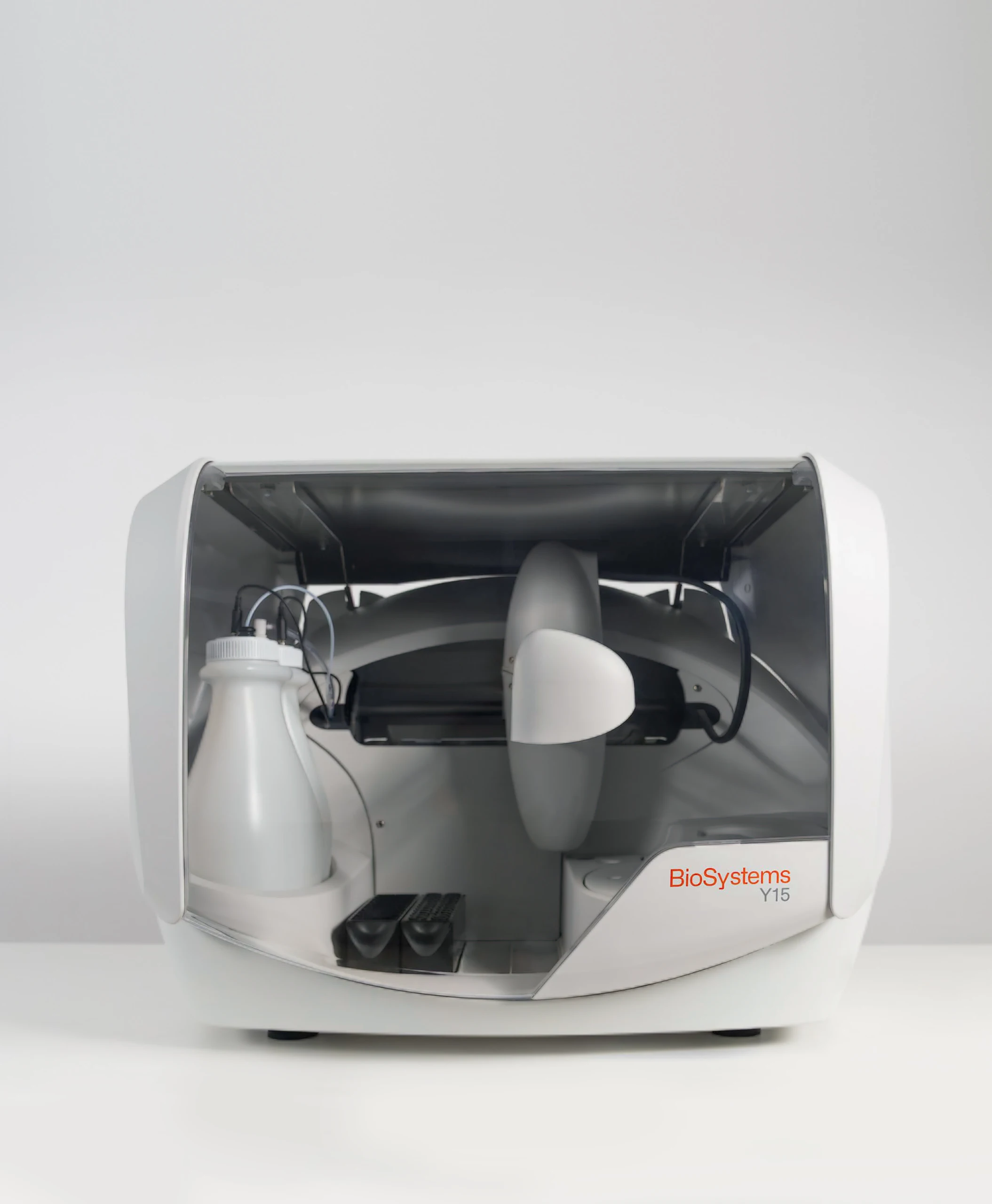

Y15 multiparametric analyser

A compact analytical system with maximum robustness that adapts to your laboratory.
Y15c is the version equipped with a cooling system, which increases the onboard stability of reagents and ensures a constant temperature during work lists.

Specifications

Mean throughput

75 results/hour

Max. capacity of samples

72 or 48 in Y15c

Size of primary tubes

Ø 13 mm or 15 mm (max. height 100 mm)

Sample types

Agri-food and beverage samples

Sample pipetting volume

From 2 μL to 80 μL

Reagents rack capacity

10 bottles of 20 or 50 mL

Reagent volume

R1 volume, 10 μL to 600 μL
R2 volume, 10 μL to 200 μL

Mains frequency

50 Hz or 60 Hz
